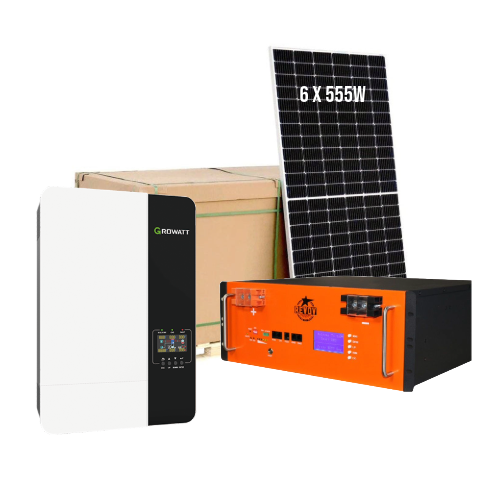

This Combo Consists of the following:

• 1 x Growatt 5kva
• 1 x Revov R100 5.1kw Lithium battery
• 6 x 555w Canadian solar panels
• 4 x 3.5m Rails
• 20m x 6mm Red solar cable
• 20m x 6mm Black Solar cable
• 12 x solar panel roof hooks
• 10 x PV Mid Lock
• 4 x PV End Lock
• 1 x Combiner box 1in 1out
• 2 x Battery Cable set
• 1 x latch fuse holder
• 2 x 125A fuse
• 2 x Rail Extension
• 1 x AC Combiner Box
• 1 x Battery Wall mount Bracket



Growatt SPF 5000 Hybrid Inverter

Functions

• Integrated MPPT charger controller.
• Equalization charging function.
• Use with Batteries or without.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.
• WIFI/GPRS remote monitoring.
• Parallel up to 6 inverters.
• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.



General Specifications

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.



Inverter Output [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms – 20ms.



Solar Charger

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC – 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.



AC Charger

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).



Physical

• Protection degree: IP20.
• Height: 330 x 485 x 135mm.
• Weight: 12 kg



SPF_3000-5000_ES_Datasheet_EN_202203a

Revov R100 51.2V 100Ah 5.1kWh lithium battery

REVOV is excited to offer the R100 EV battery, with a 1C Continuous discharge rate and a warranty covering up to 6000 cycles – offering superior performance at the lowest available cost per cycle for a lithium-iron battery of its type in South Africa.



The R100 battery is an automotive-grade lithium-iron phosphate (LiFePO4) battery with a 16-cell configuration with built-in Battery Management System (BMS). It offers exceptional performance, with 5kWh capacity, a depth of discharge up to 100% and a 10-year warranty.



It is the perfect choice to provide backup power and integrate into Solar systems where daily cycling of the system is desired. It is common to install just one battery to deal with blackouts but grow the system later. More batteries can be added easily onto a shared busbar for those reducing grid power usage in a phased approach.



Specifications and Features :

• Best cost per cycle for a lithium-iron battery
• expected lifetime of 10+ years at 25°C
• suitable for daily cycling
• lightweight and suitable for wall mounting
• integrated battery management system, with LCD display
• extreme temperature resilience
• compatible with all known Victron and Sunsynk inverters
• 1C battery with 100% Depth of Discharge Capabilities.
• 3-REVOV-R100_SpecV4



555w Canadian Solar Panels

The Canadian Solar 555W Panel is not just a solar panel; it’s a gateway to a cleaner, more sustainable energy future. With its exceptional efficiency, longevity, and eco-friendliness, it’s the ideal choice for those seeking energy independence and lower electricity costs. Embrace the power of the sun with confidence and make a positive impact on both your environment and your budget.



Features

• Frame thickness for this module is 30mm.
• Heavy snow load up to 5400Pa and increased wind load up to 2400Pa
• Minimizes micro-crack impacts
• Better shading tolerance
• Compatible with mainstream trackers, cost effective product for utility power plant
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Module efficiency up to 21.6 %
• Up to 4.5 % lower LCOE, Up to 5.6 % lower system cost
• Warranty: 12-year product & 25-year power output.



Warranty:

• 12 year Product Workmanship Warranty
• 25 year Power Warranty

CS-Datasheet-HiKu6_CS6W-MS_v2.9_EN

NB: (Courier for panels are at your own risk, should a solar panel get damaged during shipping, Invert Solar will not be held liable for the replacement of the solar panel)



Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
