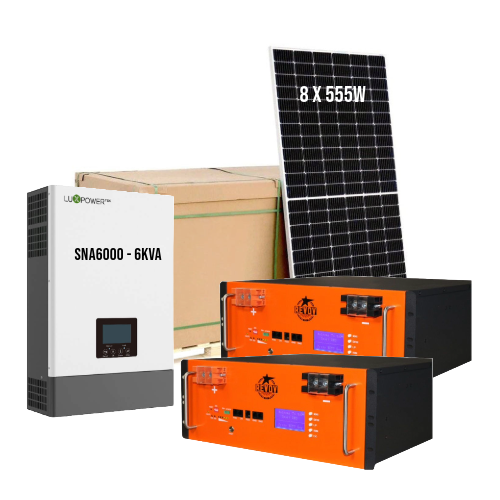

This Combo Consists of the following:

• 1 x Luxpower 6kva SNA6000

• 2 x Revov R100 5.1kw Lithium battery

• 8 x 555w Canadian solar panels

• 6 x 3.5m Rails

• 30m x 6mm Red solar cable

• 30m x 6mm Black Solar cable

• 18 x solar panel roof hooks

• 14 x PV Mid Lock

• 4 x PV End Lock

• 1 x Combiner box 1in 1out

• 3 x Battery Cable set

• 1 x latch fuse holder

• 2 x 125A fuse

• 4 x Rail Extension

• 1 x AC Combiner Box

• 2 x Battery Wall mount Bracket



Luxpower 6Kw Off-Grid Inverter SNA6000

The Luxpower 6Kw Off-Grid Inverter SNA6000 is suitable for both on-grid and off-grid solar systems. With a 6kW output power and compatibility with up to 16 units in parallel, it’s a robust choice for larger installations.
It supports various lithium batteries and includes a built-in MPPT solar charge controller.



Features



• Pure off-grid and hybrid working modes.

• High Power Output: 6KW.

• Lithium Battery Compatibility.

• Built-In MPPT Charge Controller.

• Scalable: Supports up to 16 units in parallel.

• Maximum PV Array Power: 8000W.

• Single Phase/Unbalanced 3-Phase.

• Separate Generator Port.



Specifications



• Model: SNA 6000

• Output Power: 6kW

• Input (PV DC): 6000W

• Max. PV Array Power: 8000W (4000/4000)

• Rated PV Input Voltage: 320V

• Number of Independent MPPT Inputs: 2

• PV Input Voltage Range: 100 / 480V

• MPPT Voltage Range: 120 / 385V

• Start-Up Voltage: 100V

• Max. PV Input Current per MPPT: 17/17A

• Max. PV Short-Circuit Current Input per MPPT: 25/25A

• Warranty: 2 Years

• Cooling Method: Fan

• Dimensions: 330x505x135mm

• Weight: 14.5kg



SNA 6000 Battery



• Compatible Battery Type: Lithium-ion / Lead-Acid

• Rated Battery Voltage: 48V

• Battery Voltage Range: 38.4 / 60V

• Max. Charging/Discharging Current: 140A

• Max. Charging/Discharging Power: 6000W



Revov R100 51.2V 100Ah 5.1kWh lithium battery



REVOV is excited to offer the R100 EV battery, with a 1C Continuous discharge rate and a warranty covering up to 6000 cycles – offering superior performance at the lowest available cost per cycle for a lithium-iron battery of its type in South Africa.

The R100 battery is an automotive-grade lithium-iron phosphate (LiFePO4) battery with a 16-cell configuration with built-in Battery Management System (BMS). It offers exceptional performance, with 5kWh capacity, a depth of discharge up to 100% and a 10-year warranty.

It is the perfect choice to provide backup power and integrate into Solar systems where daily cycling of the system is desired. It is common to install just one battery to deal with blackouts but grow the system later. More batteries can be added easily onto a shared busbar for those reducing grid power usage in a phased approach.



Specifications and Features :

• Best cost per cycle for a lithium-iron battery

• expected lifetime of 10+ years at 25°C suitable for daily cycling lightweight and suitable for wall mounting

• integrated battery management system, with LCD display

• extreme temperature resilience compatible with all known Victron and Sunsynk inverters

• compatible with all known Victron and Sunsynk inverters

• 1C battery with 100% Depth of Discharge Capabilities.



555w Canadian Solar Panels

The Canadian Solar 555W Panel is not just a solar panel; it’s a gateway to a cleaner, more sustainable energy future. With its exceptional efficiency, longevity, and eco-friendliness, it’s the ideal choice for those seeking energy independence and lower electricity costs. Embrace the power of the sun with confidence and make a positive impact on both your environment and your budget.



Features



• Frame thickness for this module is 30mm.

• Heavy snow load up to 5400Pa and increased wind load up to 2400Pa

• Minimizes micro-crack impacts

• Better shading tolerance

• Compatible with mainstream trackers, cost effective product for utility power plant

• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation

• Module efficiency up to 21.6 %

• Up to 4.5 % lower LCOE, Up to 5.6 % lower system cost

• Warranty: 12-year product & 25-year power output.



Warranty:



• 12 year Product Workmanship Warranty

• 25 year Power Warranty



NB: (Courier for panels are at your own risk, should a solar panel get damaged during shipping, Invert Solar will not be held liable for the replacement of the solar panel)



Warranties:



All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
